Radius Windshields Mini-RAD Shock Mount

Compact shock mount for pencil microphones
A low-profile 62 g professional shock mount built around compact 45 mm Mini-RAD hoops for small-diaphragm pencil microphones.

The Radius Mini-RAD Shock Mount delivers professional microphone isolation in a footprint designed for tight spaces and discreet placement. Its new 45 mm hoops are substantially smaller than traditional 65 mm RAD hoops, helping operators position pencil microphones closer to the subject or inside compact rigs.
The standard mount is intended for 19–21 mm microphones and includes spare 12.5 mm and 8 mm hoops for compatible smaller bodies and cables. A smooth 180-degree swivel, integrated cable clip and brass 5/8-inch mount with a 3/8-inch adaptor make it suitable for plant mics, interior booms, orchestral work, stereo arrays, wildlife and vehicle setups.

Key features
• Compact 45 mm Mini-RAD isolation hoops
• Designed primarily for 19–21 mm pencil microphones
• Spare 12.5 mm and 8 mm hoops included
• 62 g net weight and 180° swivel
• Integrated cable clip and robust professional construction
• 5/8-27 brass thread with 3/8-16 adaptor included

Ideal for
• Plant microphones
• Interior booms
• Orchestral and theatre recording
• Compact stereo, wildlife and car rigs


 Technical specifications

Compatibility

• A detailed microphone compatibility list is reproduced in the included manufacturer guide.
• Compatible with existing Radius RAD mount and Mini-ALTO components.
• Examples include selected DPA, Neumann, Schoeps, Sennheiser, Sanken, RØDE, Rycote and other pencil microphones in the listed diameter ranges.

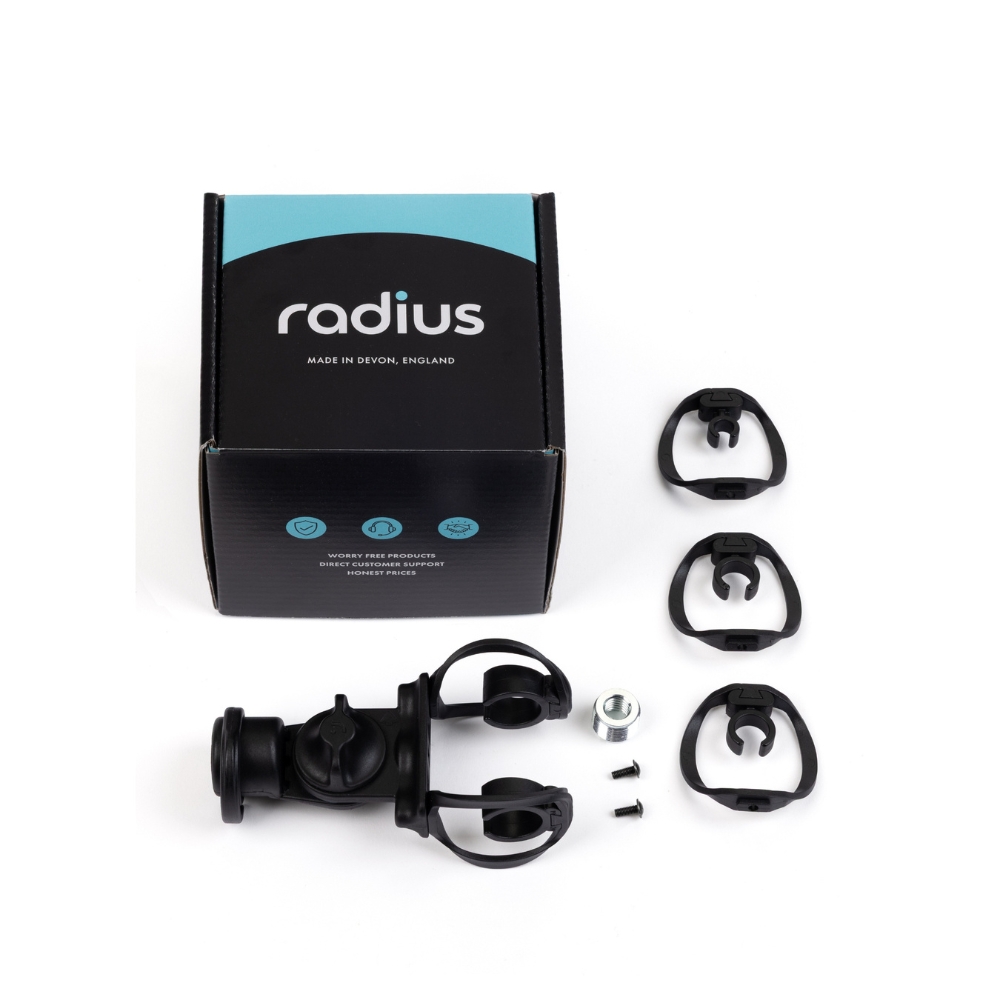

In the box

• Mini-RAD Shock Mount with 19/21 mm 55D black hoops
• 1 × 8.0 mm 45D espresso-brown hoop
• 2 × 12.5 mm 45D espresso-brown hoops
• 1 × 2 mm Allen key
• 2 × M3 × 8 mm screws
• 1 × metal 5/8-27 male to 3/8-16 female adaptor
