HT10S
10.1 inch 1500nit 3G-SDI Touch Control Camera Monitor
£287.00 ex vat
£344.40 inc vat
The Lilliput HT10S is a precision on-camera monitor with an amazing 1500 nit Ultra High Bright LED Panel designed specifically for photography and film-makers in outdoor video and film shooting environments.
It has a touchscreen capable of controlling video a camera menu system directly from the LED Panel (connected by LANC cable), and features HDR 10+ and 3D-LUT (Look Up Table) capabilities.

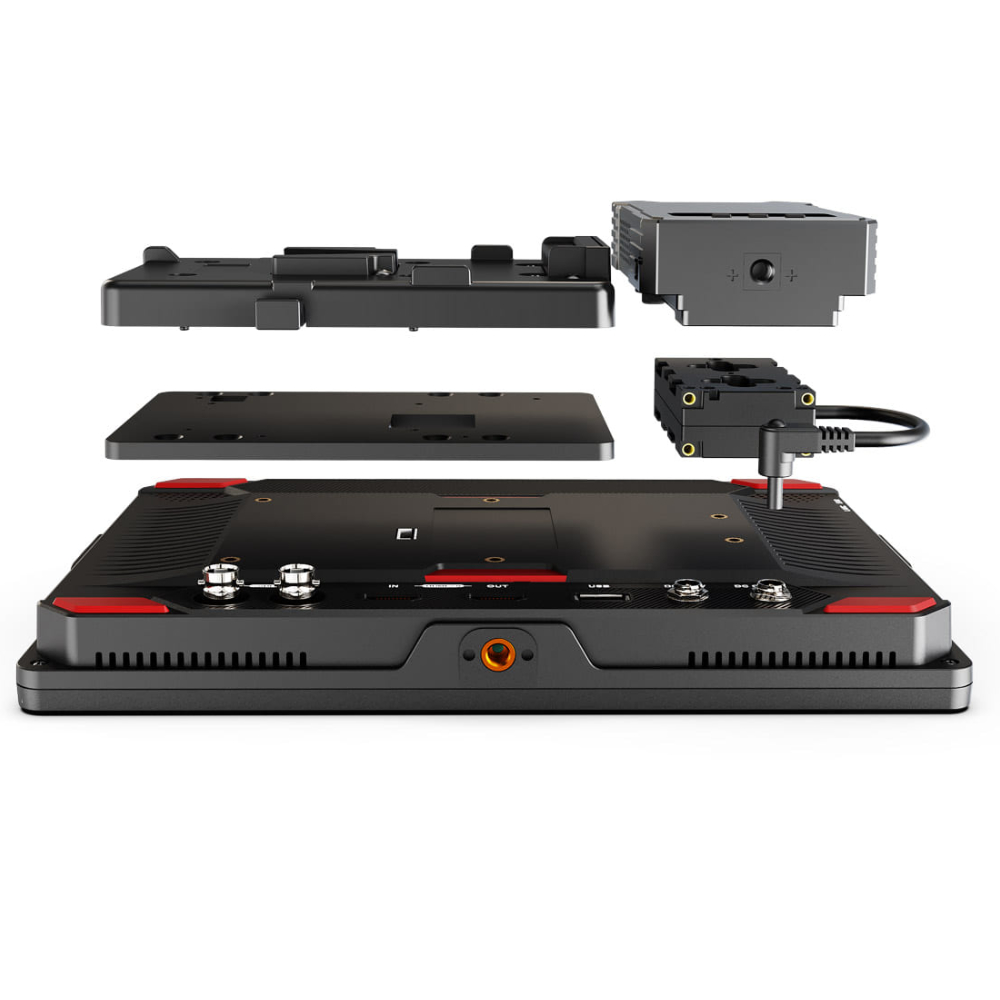

***V-lock plate is optional accessory***
| Display | |
| Aspect Ratio | 16:10 |
| Brightness | 1500 cdm² |
| Colour Space | (Original) 125% BT.709 / 92.5% DCI P3 |
| Contrast Ratio | 1000:1 |
| Resolution | 1920 x 1200 |
| Touch Panel | Capacitive Touch |
| Viewing Angle | 170° / 170° |
| HDR | HLG; ST2084 300/1000/10000 |
| Screen Size | 10.1" LCD |
| Input | |
| SDI VIdeo Input | 3G-SDI x1 |
| HDMI Video Inputs | 1x HDMI 2.0 |
| Connections | |
| Audio Output | 1x Speaker, 1x HDMI (8ch 24-bit), 1x Ear Jack 3.5mm-2ch-48kHz 24-bit |
| SDI Video Output | 1x 3G-SDI |
| HDMI Video Output | 1x HDMI 2.0 |
| Formats | |
| SDI Formats | SDI - 1080p 24/25/30/50/60 - 1080pSF 24/25/30 - 1080i 50/60 - 720p 50/60 |
| HDMI Formats | HDMI - 1080p 24/25/30/50/60 - 1080pSF 24/25/30 - 1080i 50/60 - 720p 50/60 |
| Size | |
| Dimensions | 251mm x 170mm x 26.5mm |
| Weight | 850g |
| Power | |
| Input Voltage | DC 7-24V |
| Power Consumption | <=23W |
| Environment | |
| Operating Temperature | 0°c to 50°c |
| Storage Temperature | -20°c to 60°c |
