A11

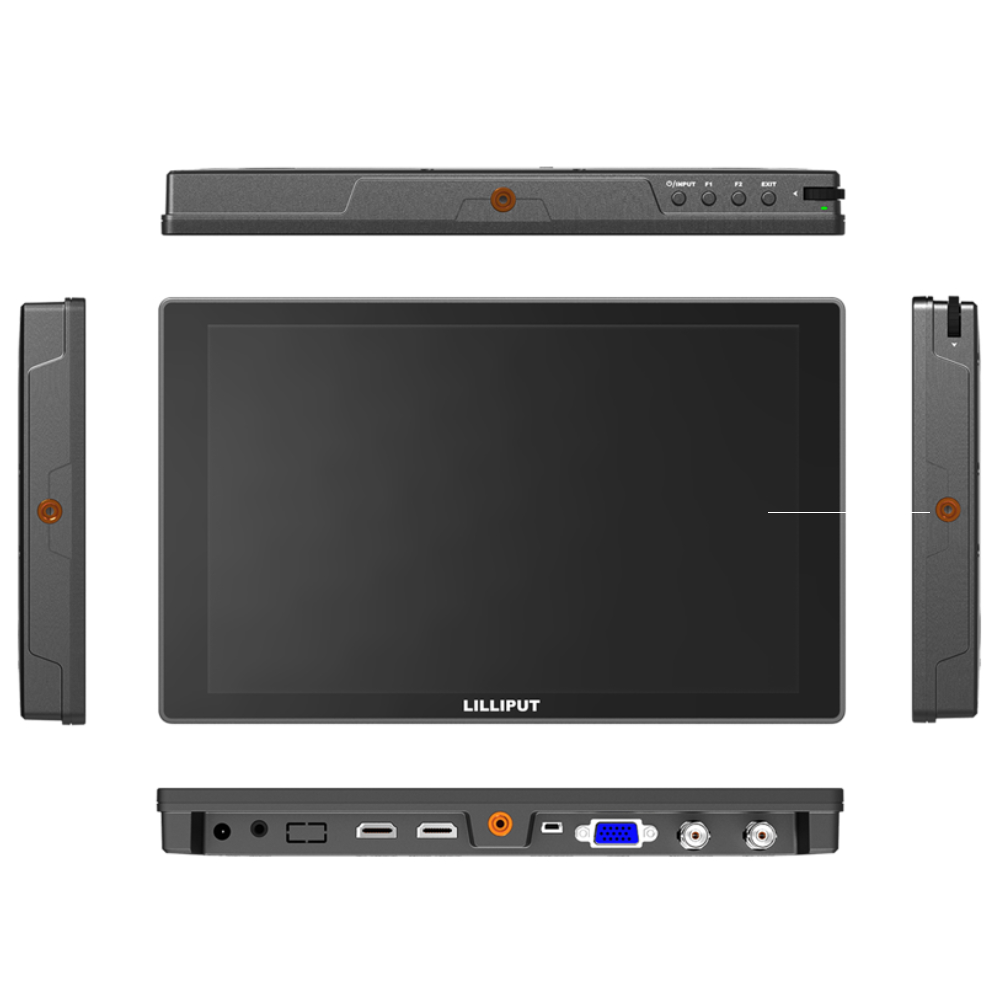

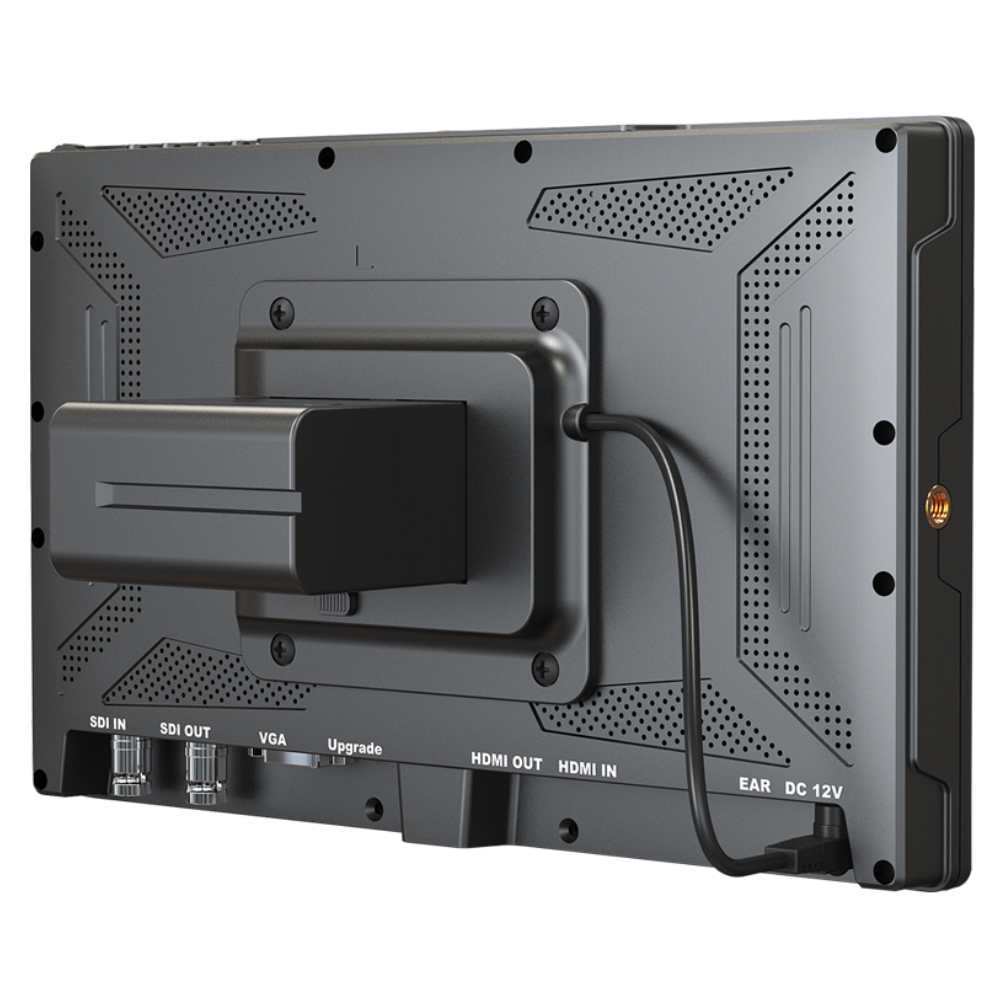

10.1" 4K HDMI Monitor
£263.00 ex vat
£315.60 inc vat
The Lilliput A11 is a 10.1" 4K compatible monitor with a 1920 x 1200 px panel, and HDMI 1.4b + SDI connectivity. The Lilliput A11 has been designed for the video and film industry professional and is ideally suited for directors and camera operators operating 4K capable equipment.
Looking for a monitor to use in a Teleprompter? No problem - this model features both X/Y Flip and Mirroring of the input image, making it an ideal tool for the job.
| Monitor Specification | |
| Screen Size (diagonal) | 10.1" - (25.65 cm) 8bit IPS |
| Aspect Ratio | 16:10 |
| Native Resolution | 1920x1200 |
| Dimensions | 252mm x 157mm x 25mm |
| HDMI Formats | 4K 30hz // 1080p // 1080i // 720p // 576p // 576i // 480p // 486i |
| Power Consumption | <= 13 W |
| Viewing Angle (degrees) | 175° / 175° |
| Brightness Ratio (cd/m2) | 320 |
| Video Inputs | 3G-SDI (input) x1 // HDMI 1.4b x1 (supports 4K 30 Hz) // VGA x1 |
| Video Outputs | 3G-SDI Loop (Output) x1 // HDMI 1.4b x1 (supports 4K 30 Hz) |
| Audio Outputs | Audio Speaker x1 // Audio Ear Jack x1 |
| Input Power | 12V 1A // Comaptible with DC 24V |
| Operating Temperature | 0°c - 50°c |
| Mounting Options | Hot Shoe Mount (Supplied) // V-Mount / Anton Bauer mount (Optional) // Gimbal Bracket (Optional) // VESA 75 Stand (Optional) |
| Dimensions | |
| Weight (g) | 550g |
| Environment | |
| Storage Temperature | -20°c to +60°c |
