FS7
7" 4K HDMI / SDI Input Monitor
£191.00 ex vat
£229.20 inc vat

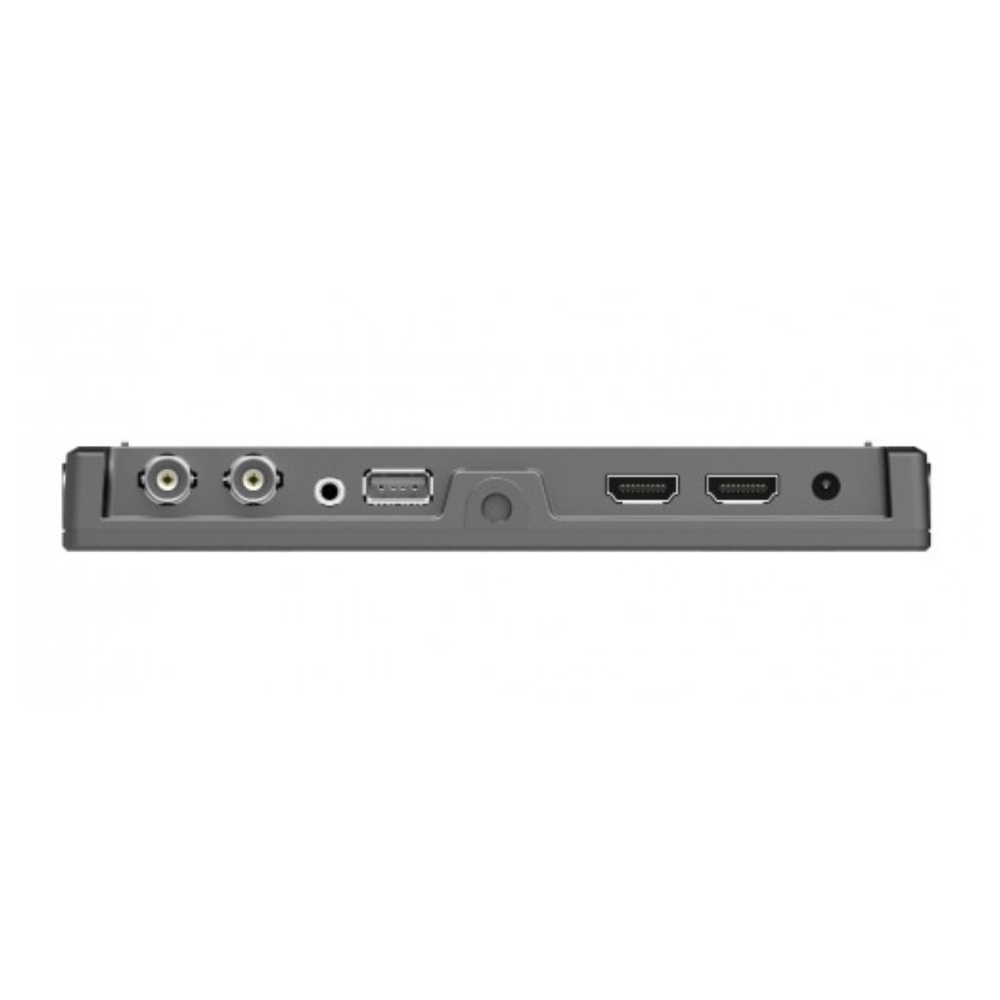

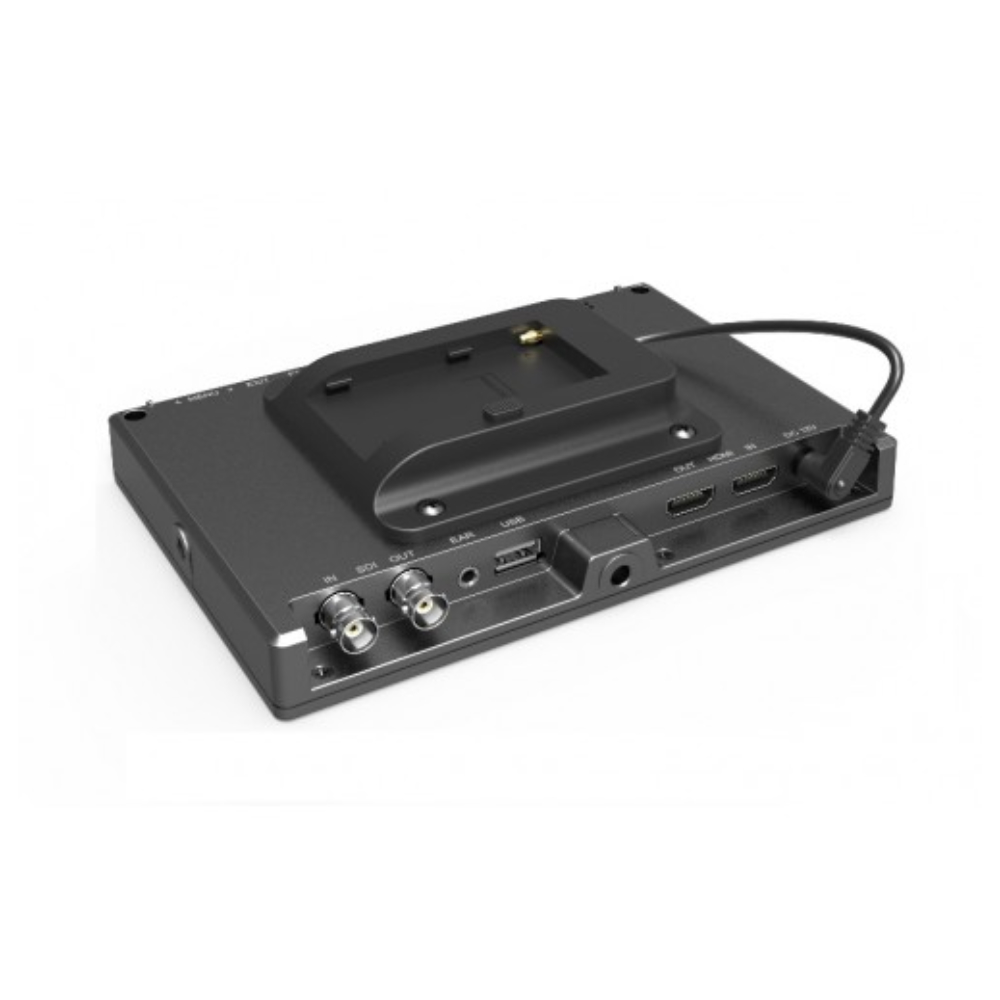

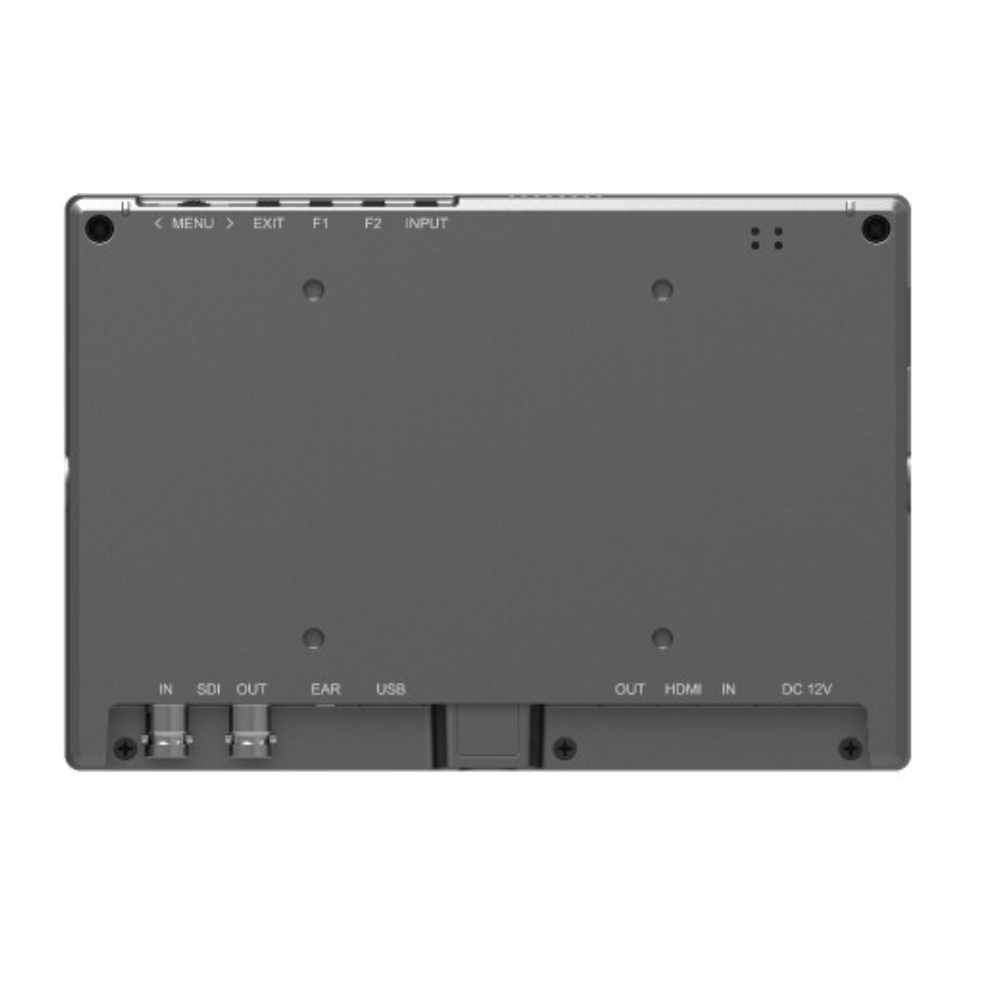

The Lilliput FS7 monitor is a 7" widescreen monitor with 4K HDMI 1.4 input with loop through, and SDI input / output loop through. Housed in a solid metal frame, and with a plethora of additional framing features / options, it gives you superior control over your workflow whether in the field or in the studio.
| Monitor Specification | |
| Aspect Ratio | 16:10 |
| Native Resolution | 1920 x 1200 |
| Maximum Resolution | 4096 x 2160p |
| Viewing Angle (degrees) | 170° Horizontal / 170° Vertical |
| Brightness Ratio (cd/m2) | 500 |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Video Inputs | HDMI 1.4, 3G SDI (BNC) |
| Video Outputs | HDMI 1.4, 3G SDI (BNC) |
| Audio Outputs | Speaker Earphone Jack |
| Input Power | 12V DC 1A 12W (Consumption) |
| Operating Temperature | -20°c to +60°c |
| Mounting Options | VESA 75 Holes 1/4" BSW Thread |
| Contents Of Box | |
| Product | Lilliput FS7 Monitor |
| Connection Cables | Mini HDMI to Cable |
| Power Adaptor | 12V 1.5A Power Supply - UK, EU, or USA (according to delivery destination). |
| Mounts and stands | 1/4" BSW Shoe Mount, |
| Additional accessories | Velcro Sunshade + Bracket; F-970 Battery Bracket; HDMI A to C Cable Hot Shoe Mount |
| Dimensions | |
| Length (mm) | 182 |
| Width (mm) | 124 |
| Depth (mm) | 22 |
| Weight (g) | 320g |
