FS5
5.4 inch HDMI 2.0 & 3G-SDI On-Camera Monitor
£175.00 ex vat
£210.00 inc vat

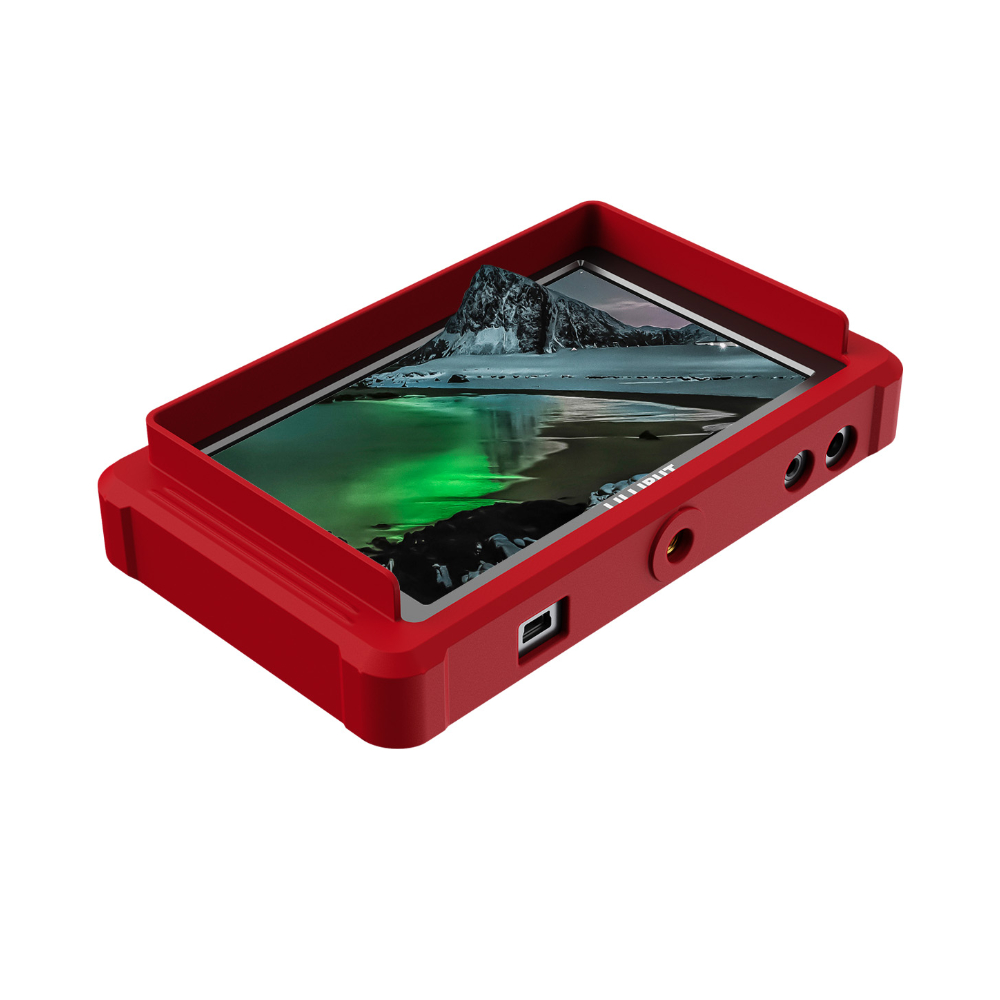

The Lilliput FS5 is a top of the range 5" monitor unit, designed to suit the needs of the portable 4K video shooter. With a built in 1920 x 1200 screen and with the capability to show a 4K 60Hz input (via HDMI 2.0), the FS5 suits most needs for a portable, reliable 5" monitoring solution.
| Display | |
| Aspect Ratio | 16:10 |
| Brightness | 600cdm² |
| Contrast Ratio | 1000:1 |
| Display Screen | 5.4" LTPS |
| Resolution | 1920 x 1200 |
| Viewing Angle | 160° / 160° |
| HDR | ST2084 300/1000/10000 / HLG |
| LUT Support | 3D-LUT (17 x 17 x 17 .cube format) |
| Supported Log Formats | Slog 1 / Slog 3 / Arrilog / Clog / Jlog / Vlog / Nlog / User |
| Video Signals | |
| 3G SDI In | 1x |
| HDMI In | 1x HDMI 2.0 Supports up to 4K60Hz |
| Audio | |
| Speaker | 1x Speaker + 1x Earphone Jack |
| Size | |
| Dimensions | 154.5mm x 90mm x 20mm |
| Weight | 295g |
| Power | |
| Battery | NP-F Plate / LP-E6 Plate Included (Battery sold separately) |
| Current | 0.75A (12V) |
| Input Voltage | DC 7-24V |
| Power Consumption | <= 9W |
| Environment | |
| Operating Temperature | -20°c to +50°c |
| Storage Temperature | -30°c to +70°c |
