Audioroot
eSmart Trio
ESMART-TRIO
Advanced Portable Smart Battery Distribution System

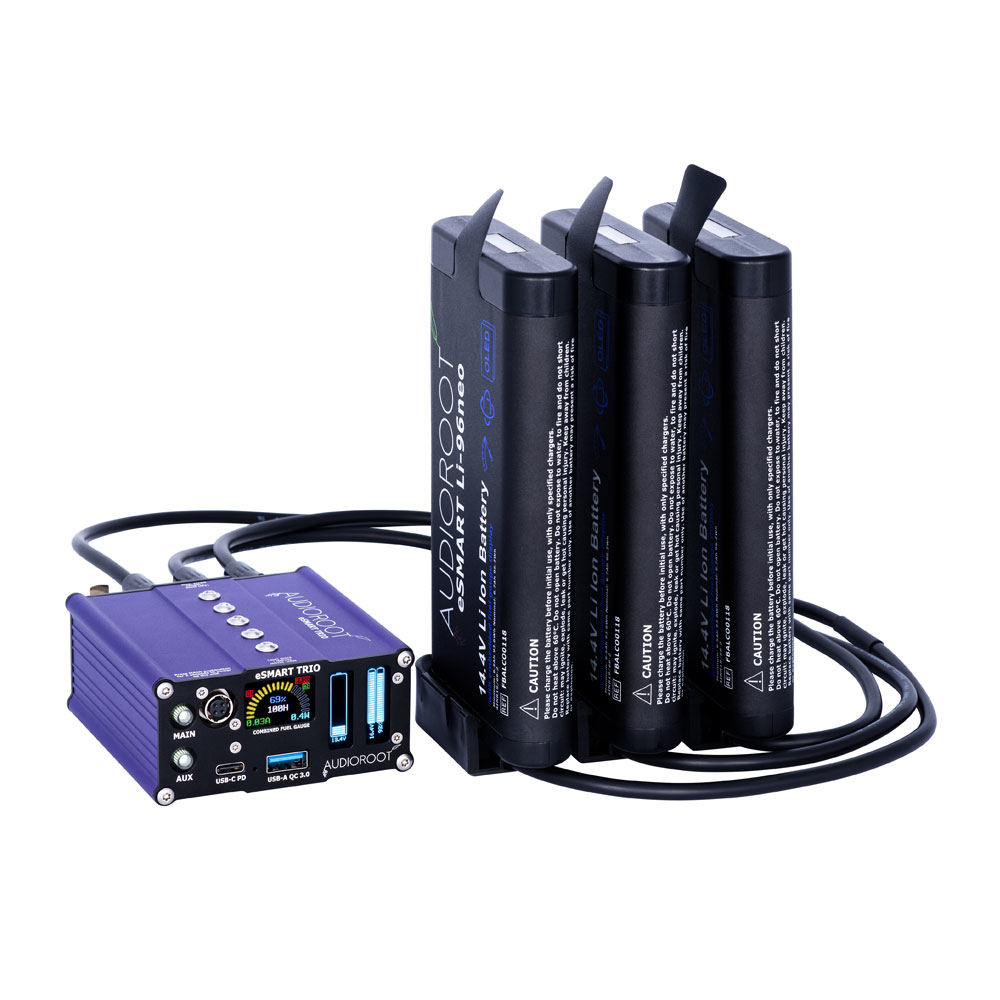

The AUDIOROOT eSMART TRIO is an advanced portable smart battery power distribution system for location sound recordists. It can accept up to 3 independent power sources (3 batteries or 2 batteries + 1 AC/DC external power supply) and distributes power via 8 x DC connectors and 2 x USB ports.
This product was designed to offer sound location recordists a wide variety of solutions to power their devices. With the eSMART TRIO users can benefit from advanced features like battery hot swapping and/or AC power with battery backup, smBUS data flow through, overcurrent/short circuit fault detection and more…
The eSMART TRIO offers 7 industry standard Hirose™ compatible DC output connectors as well as a Switchcraft™ compatible TA4F output connector with smBUS battery data aggregation.
The distributor also offers 1 x USB-A Quick Charge 3.0 port and 1 x USB-C port with Power Delivery. Finally all battery and power information is displayed on a 3 OLED displays.
Features:

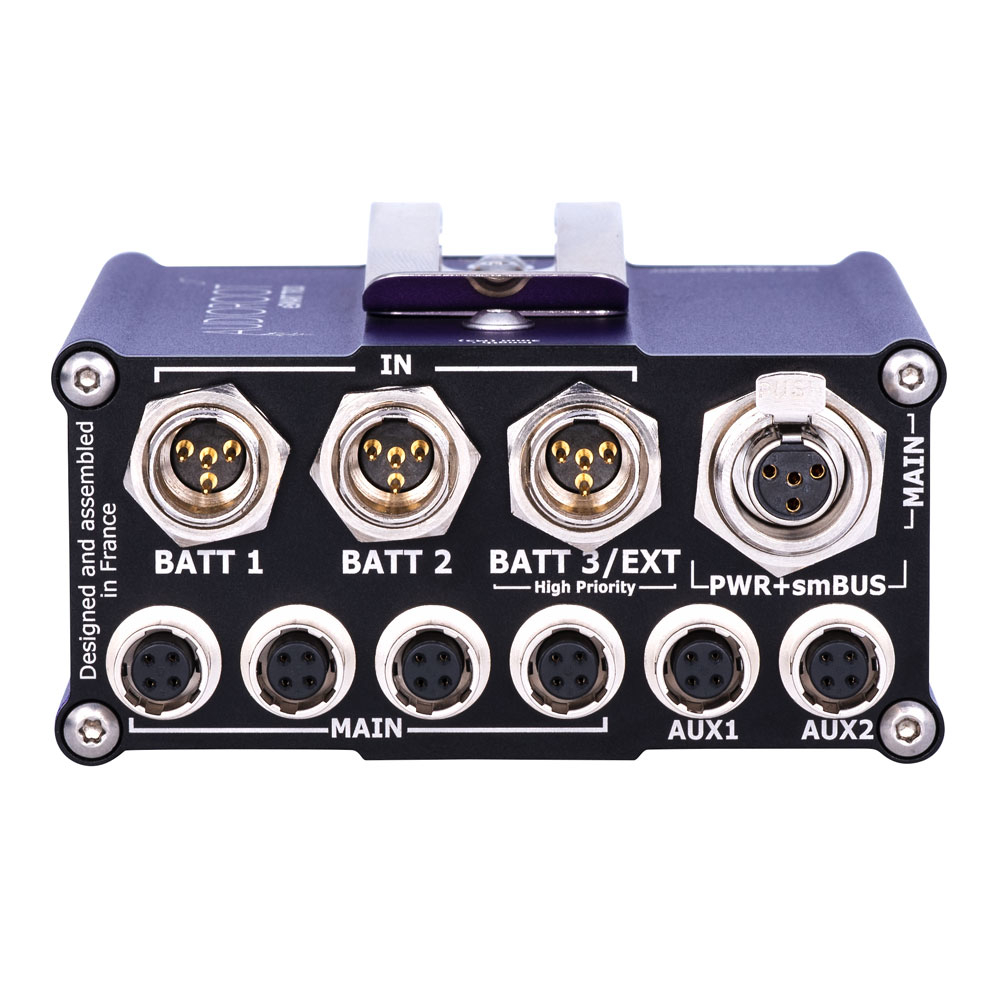

3 x power inputs on rugged TA4M connectors
6 x industry standard Hirose™ compatible DC output connectors on the rear panel (4 main and 2 auxiliary)
1 x TA4F Switchcraft™ DC output connector with smBUS battery data aggregation
1 x industry standard Hirose™ compatible DC output connector on the front panel (main)
2 x white led illuminated pushbuttons
1 x USB-A connector with Quick Charge 3.0
1 x USB-C connector with Power Delivery
1 x 96×64 pixels color OLED display
2 x 128×28 pixels blue OLED display
10 x M3 threaded holes for various mounting options
1 x belt clip included
max. total current supply : 11.5A (165W @ 14.4V)
1 x mini USB port for firmware upgrades (located inside the unit)
