RODETF5MP
Premium matched pair condenser cardioid microphones
£1,057.50 ex vat
£1,269.00 inc vat

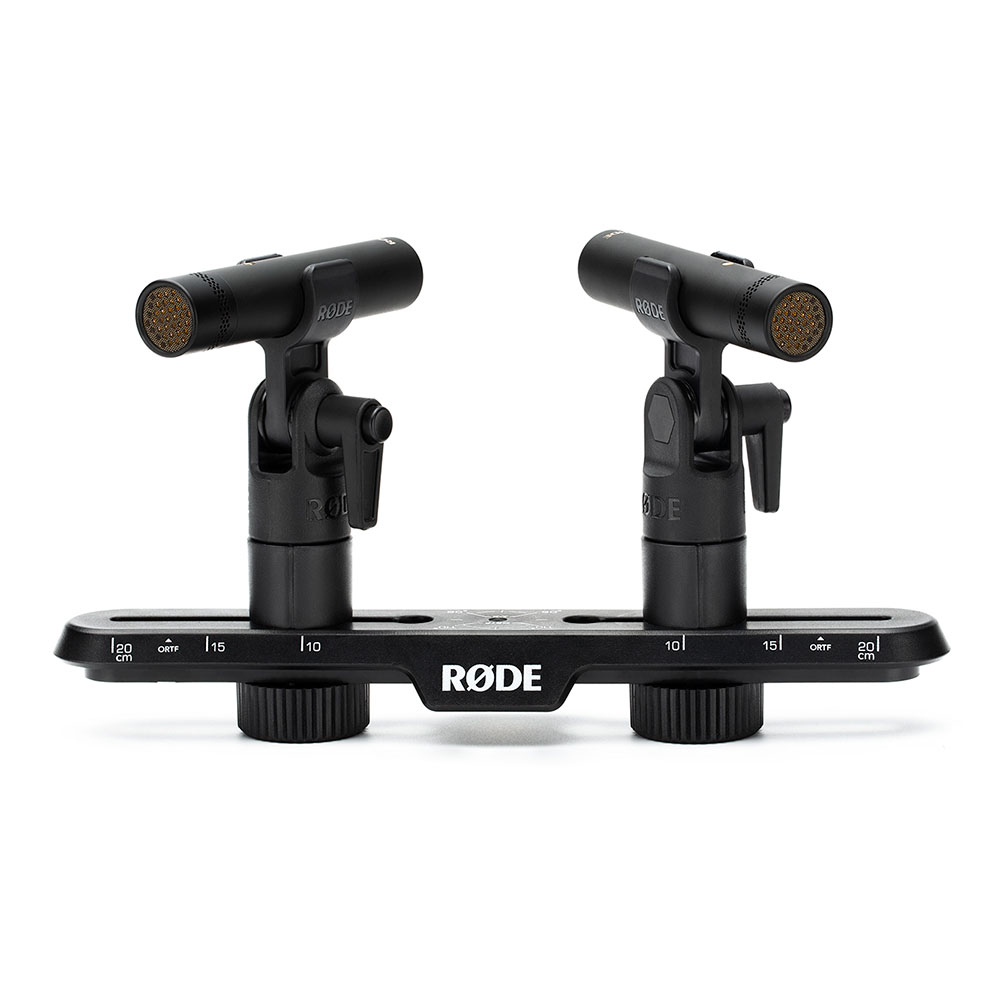

Rode TF-5 Matched Pair
The TF-5 represent a new standard in small diaphragm condensers. The all-new capsule is engineered to sub-micron tolerances, giving unprecedented consistency of tone and response.
The TF-5 features the hallmark clarity and airiness of other RØDE small diaphragm mics, and adds to this a unique warmth of tone which is often lacking in smaller ‘pencil mics’ of this type, making the TF-5 uniquely versatile.
Features:
| Acoustic Principle |
Externally biased condenser
|
| Active Electronics |
JFET impedance converter with bipolar output buffer
|
| Polar Pattern |
Cardioid
|
| Frequency Range |
20Hz - 20kHz
|
| Frequency Response |
30 Hz - 20 kHz ±3dB // 20 Hz - 20 kHz ±4dB
|
| Output Impedance |
63Ω
|
| Signal to noise Ratio |
80 dB
|
| Equivalent Noise |
14 dB SPL
(A-weighted, as per IEC651) |
| Input SPL @ 1% THD |
135 dB SPL (1kHz @ 1% THD, 600Ω load)
|
| Sensitivity |
-29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz)
|
| Dynamic Range |
112.6 dB (1kHz @ Max SPL)
|
| Power Requirements |
7mA @ 48V phantom power
|
| Weight (g) |
114g (single microphone)
|
| Dimensions |
Length: 98.7mm Diameter: 20mm
|
