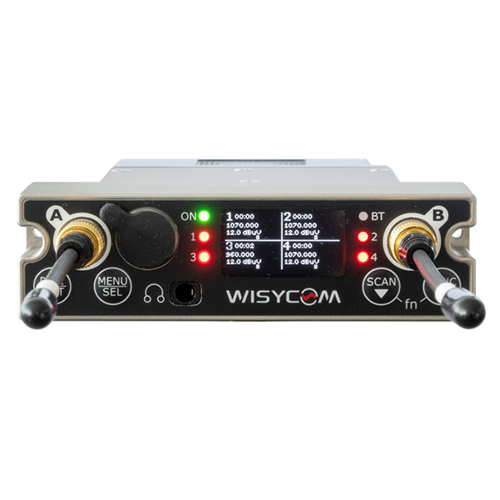

MCR54 Four Channel Slot in Receiver

The Wisycom MCR54 Four Channel Slot In Receiver is a camera quadruple true diversity wireless microphone receiver system in a modular stand alone or slot in configuration. It’s compatible with most camera’s slots and “multi-slot” mixer accessories.

Main Features:

• Four channels True Diversity receiver (8 Receiver boards!)
• Exceptional compactness and high robustness
• DSP Analogue & Digital Audio Output (AES3)
• Up to 790 MHz bandwidth in 470/1260 MHz range
• Next Gen Multiband front-end filtering:
• High Q electronically tunable filter in 470-798 MHz
• 1st narrowband filter
• 2nd narrowband filter
• Wideband and Narrowband DSP-FM operation (SW selectable):
• Narrowband allows more 50% band efficiency
• Narrowband allows about 3dB extra sensitivity and noise immunity
• Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
• High contrast OLED display
• Automatic scan & transmitter programming through infrared and Bluetooth 5 long range
• DSP based for extreme flexibility and multi-companding operations
• Monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager 2.0 (computer SW)

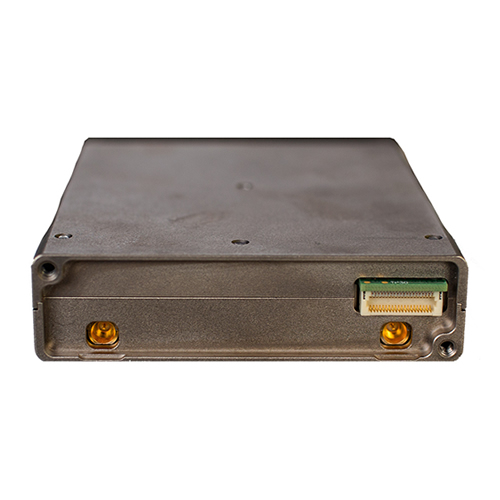

• Rear antenna connectors and micro audio and power adapter
