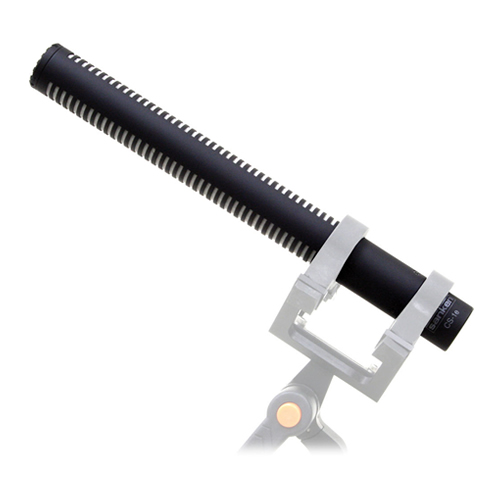

The CS-1e is Sanken’s solution to a large demand from many engineers in the video and film Industries. This shotgun mic is easily hidden from the camera’s view because of its short length. Although only 181.5mm, the CS-1e has very sharp directivity and provides excellent sound in a wide variety of professional engineering applications. The CS-1e is very effective on boom poles, and also works extremely well with various kinds of camera mounts for one-man ENG operations. Affordably priced, the CS-1e is ideal for today’s highly mobile operators.
Features
Directivity | Super Cardioid / Lobar |
---|---|
Transducer | DC biased condenser |
Frequency range | 50Hzï½Å¾20kHz |
Sensitivity (nominal at 1kHz) |
63.1mV/Pa (-24dB,0dB=1V/Pa) |
Equivalent noise level (A-weighted) |
15dB-A |
Max SPL (1% THD) | 130dB SPL |
Output impedance at 1KHz |
120ohms |
Powering | +48V±4V U.P.F |
Current consumption | 3.5mA |
Weight | 80g |
Dimensions | 181.5mm x 19mm(diameter) |
Surface finish | matte black |
Connector | XLR-3M |
Included Accessories
Urethane wind screen
Measurement data
Instruction manual
Warrant card
Vinyl case
