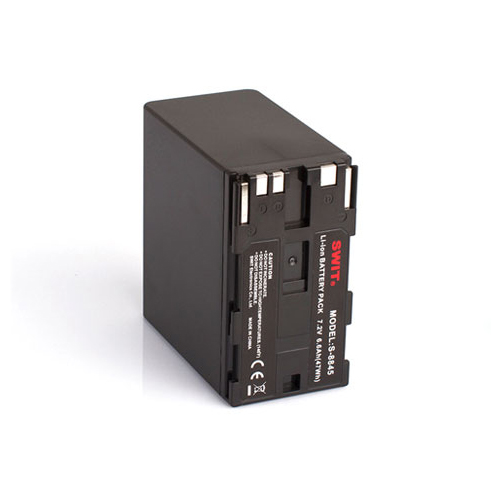

With 7.2V nominal voltage, the S-8845 has 47Wh / 6.6Ah capacity, and can run approx 7 hours on XF105 when LCD monitor is on, andapprox 4.5 hours on Canon EOS C300.

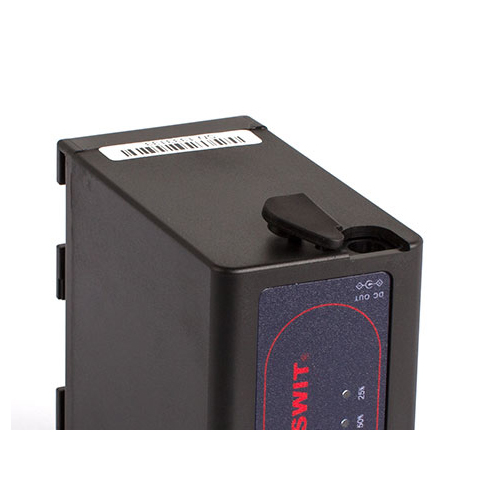

Build-in Pole-tap DC Output Socket
A 5.5/2.1mm pole-tap DC output socket is equipped on the side of S-8845 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera.
The Max power from the pole-tap is 30W, 4A. The Pole-tap socket can also be used as charging input, by SWIT portable charger S-3010D.
4-level LED Power Indicator
The S-8845 battery has the 4-level LED power indicators to check
the battery remaining capacity. You can get a quick view of capacity
before using.
Easy Charging
The S-8845 can be charged on SWIT Dual channel charger S-3602C. It takes about 4 hours and 30 minutes to charge from empty to 100%.
And you can also use SWIT S-3010D Portable Pole-tap Charger for S-8845. It will take 7 hours to fully charge.
Adopted high quality Lithium cells
Over more than 15 years, SWIT has been leading brand of broadcast camera batteries. The first reason is the high quality Lithium cells we adopted.
The high quality cells featured long life, durable, safety, and most of all, the cells has very little difference to each other, which ensures the high performance of the whole battery pack.
Moreover, the cells we’re using, have a smooth discharging curve by voltage, so that you can judge the remaining running time accordingly. Also when in storage, the self-discharging rates are very little, that extends the battery life effectively.
Nominal Voltage | 7.2V | |
Capacity | 47Wh,6.6Ah | |
Max output power | Total | 45W,6A |
Pins | 30W,4A | |
Pole-tap | 30W,4A | |
Applicable camera | Canon XF100/105, EOS C300 | |
Net weight | Approx 300g | |
Dimensions | 71×38×70mm |
