WBS-GA-015
PLEASE SEE DESCRIPTION

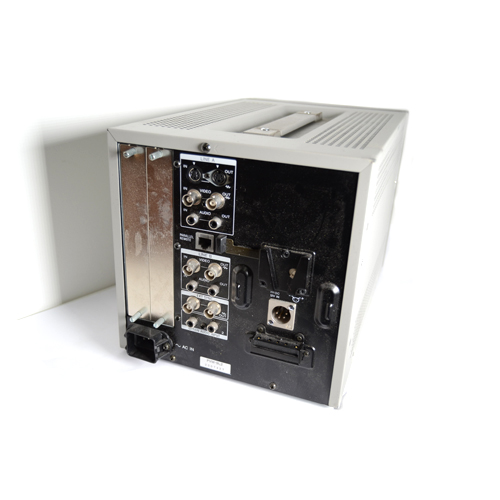

The Sony PVM-9L2 monitor is small enough to take into the field and high quality enough for broadcast applications. It incorporates the commonly required Y/C and composite inputs and can be upgraded to accept component and serial digital signals. Additionally, the monitor automatically detects widescreen and 4:3 aspect video. This monitor also comes with two additional slots to add optional boards
This Sony PVM-9L2 is USED and has cosmetic WARE
Call in if you wish to inspect the item and make us an offer.
| Application | Portable |
| CRT Size | 8 inch |
| Video System | NTSC, PAL, SECAM |
| Maximum Resolution | 250 Lines |
| Phosphor | P-22 |
| Color Temperature Pre-Sets | 6500k |
| Input and Output Connectors | Composite- BNC (x 2 input, 2 output) Y/C- SVHS 4-Pin (x 1 input, 1 output) Audio- RCA (x 2 input, 2 output) Analog Component- Optional with BKM-129X (3 BNC x 1 input, 1 output) Serial Digital- Optional with BKM-120D (BNC x 1 input, 1 output) Firewire- Optional with BKM-155DV (6-Pin x 1) Sync- BNC (x 1 input, 1 output) |
| Set-Up Features | Underscan- Yes Blue Gun- Yes H/V Delay- No Aspect Switchable- Yes Degauss- Yes |
| Remote Control | RJ-45 (x 1) |
| Rack Mount | MB-520 |
| Power Requirements | 100 to 240 Volts AC, 50/60 Hz 12 Volts DC |
| Power Consumption | 47 Watts |
| Dimensions (WxHxD) | 8 5/8 x 8 5/8 x 14 3/4 inches |
| Weight | 17 lbs.10 oz. |
